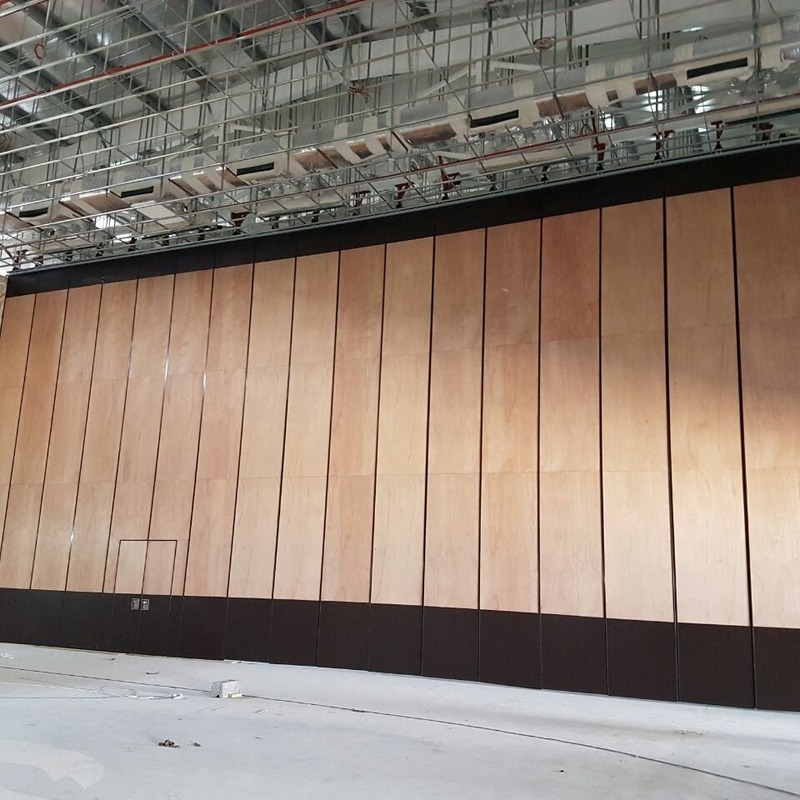

designed for movable partition as high as 7 m to16 m with max soundproof rate 53 dB. Load bearing of each meter is more than 2000 kilograms, pulley bearing more than 1600 KGS, used in large place, such as banquet hall, multi-function hall, exhibition center, gym and conference room. Ultra-high type partition is top hung system, hanging wheel sliding in the track smoothly and stability without vibration, the 16 meters high partition can easily moved even being pushed at waist-high. With build-in oriental device, the panel can make a turn automatically as sliding in the straight rail.
What is my function?
The Neuwall Partition Walls is a top quality moveable wall system that allows you to optimize the use of available space with speed and ease.
Retractable pressure seals on top and bottom are extended and retracted by a single 180°turn removable operating handle.
Once the panel is positioned, they are sealed in place with retractable pressure seals
Final closure of the wall is achieved by extending a telescopic sleeve on the last panel.
Panel Suspension | Top hunge system without the need for a floor track. | ||||
Panel Width | Each panel 600mm-1200mm. | ||||
Track | Aluminum OR Steel Track | ||||
Roller on panel | Single or Double Roller | ||||
Panel Frames | Heavy-duty steel-gusseted aluminum inner frames reinforced with full height. | ||||
Top&bottm seals | Top and bottom pressure retractable seals ensure effortless moved and locked. | ||||
Module | 700mm - 1200mm maximum. | ||||
Panel stacking | Numerous panel stacking options for complete flexibility. | ||||
Panel face | MDF,Plywood, woven fabric, Leather,Natural wood veneer, Melamine,Wood moldings, etc. | ||||
Finishes | Satin anodised or polyester powder coating to all exposed aluminium components available in a wide range of colours as standard. | ||||
Movable, top hung system without the need for a floor track
Retractable top and bottom seals ensure effortless movement of panels
Combines elegance with robust construction
Concealed or exposed panel edge profiles
Numerous panel stacking options for complete flexibility
Sealed for life roller assemblies provide smooth and silent movement
Various levels of sound reduction
TYPE | NW830 | NW835 | 100A&125A | ||
Panel suspension | Top hung only | ||||
Track system | Single or twin point | ||||
Panel thickness | 65MM | 88MM | 100MM OR 125MM | ||
Panel height | Up to 4000mm,Heights greater than 3000mm refer to our Technical Dept | Up to 6000mm,Heights greater than 6000mm refer to our Technical Dept.inset Pass doors above 2400mm.Full Height pass door up to 3000mm high Document 'M'disabled doors-optional | |||
Max height | 4000mm with heavy duty track | 6000mm with heavy duty track | 18000mm with heavy duty track or steel track | ||
Panel width | 600-1200mm | ||||
Frame construction | Aluminium | Aluminium | Aluminium/steel | ||
Face material | 9mm/12mm | 9mm/12mm | 9mm/12mm/15mm | ||
Fire safety | optional Class I or O | ||||
Vertical profiles | Aluminium,anodised with sealing profiles,painted-optional | Aluminium,anodised with sealing profiles,painted-optional | Aluminium,anodised with sealing profiles,painted-optional | ||
Retractable seals | Aluminium,black with double rubber seals | Aluminium,black with double rubber seals | Aluminium,black with double rubber seals | ||
Operation of seals | Manual,with supplied operating handle | ||||
Locking | Optional lock to pass doors | ||||
Pass Doors | Single open in oanel or double open in two panel | ||||
Sound insulation | 41,43,48dB Rw | 43,48,51,53dB Rw | 48,51,53,58dB Rw | ||
Weight | Approx 33-40kg/sq M | Approx 43-50kg/sq M | Approx 63-70kg/sq M | ||
How to select the suitable movable wall for your site?
We have 4 types of movable wall,65type,80type,100type and 125 ultra-high type. You can choose the right movable wall upon the Height and Soundproof requirement as following,
NW830-- Max height 3.5m, soundproof: 38dB to 43dB
NW835- Max height:5.5m,Soundproof: 43dB to 53dB
100type--- Max height:7m,Soundproof: 43dB to 58dB
125ultra-height---Max height:17m,Soundproof: 38dB to 48dB
What you should do on site?
A beam(truss) should built on site for track installation.The min distance leaving for track installation from false ceiling to top ceiling is 200mm.
How to install?
We will provide the installation manual and video guiding the installation job. We can also dispatch the installation engineer supervising the installation as request.
What is lead time?
The lead time is 7 days to 10 days.
How to transport?
Sea transport is a common mode of transportation. In an emergency, can be air freight.
How do the goods packing?
corrugating paper packaging, MDF batten cover all around corner.
The movable wall panel and track, fittings will be packed separately.
What is Procurement procedure?
Firstly, send us the shop drawings(if the shop drawings is not available, you can tell us the height from false ceiling to finished floor and width from wall to wall)
Secondly, we offer you the movable wall layout drawings for your confirmation
Thirdly, we quote the movable wall in accordance with confirmed drawings.
What is finishing face?
The bottom panel is MDF or plywood, which is unfinished face. You can do decoration on site, such as wallpaper, paint, etc.
We can also provide the product with finished face, such as faux wood, Woven fabric and Leather.
