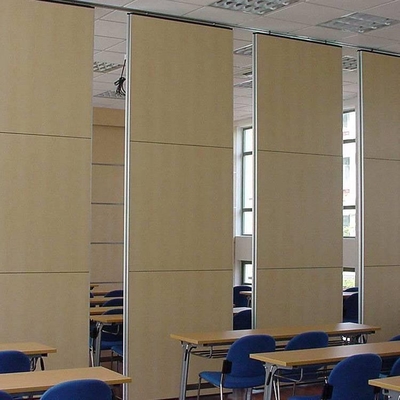

With acoustic insulation up to 56dB, their noise reducing capabilities make our movable walls the ideal option for hotels, conference centres, educational establishments, offices and training areas, areas that so commonly falter on the room configuration front.
Available in three thicknesses - 85mm, 100mm and 110mm - and with acoustic ratings of between 37dB and 56dB, each and every one of our moveable wall products is built to last and designed to maximise the functionality and flexibility of spaces of all shapes and sizes.
The movable walls equipped with automatic retractable seals which, when retracted, deliver an effortless gliding motion during operation. With our moving partitions there is no need to fit a floor guide, instead the unique aluminium overhead track system. Thanks to this track and carrier system, our movable partitioning walls have found homes in various environments to unlock the smart and space friendly solutions that commercial clients everywhere crave. Available in a selection of surface finishes, our moveable walls have the aesthetic appeal and functionality to work well in any space.
Specification
Series | 85 | 100 | 110 |
Acoustic Rating dB (Rw) | 37 - 42 | 39 - 50 | 37 - 56 |
Acoustic Rating STC | 37/43 | 47/53 | 37/57 |
Thickness (mm) | 85 | 100 | 110 |
Weight kg/m2 | 35/43 | 45/55 | 36/55 |
Max Panel Height (mm) | 6000 | 14000 | 14000 |
Max Opening Width | Any | Any | Any |
Max Panel Widths (mm) | 600 - 1250 | 600 - 1250 | 600 - 1250 |
Panel Construction / Frame | Aluminium | Aluminium | Aluminium / Steel |
Panel Construction / Seal | Automatic | Automatic | Automatic |
Panel Construction / Outer | Particle Board | Particle Board | Particle Board |
Track System / Ceiling | • | • | • |
Track System / Floor | - | - | - |
In addition to our standard finishes, we are able to coat the surface of all panels using any bespoke colour of your choice. Additionally, we can cover surfaces in printed graphics giving you the option to transform your partition into a work of art.
Automatic Movable Partition Walls
Features:
1.Full Automatic, Intelligent Microcomputer Control.
2.Surface Treatment Optional
3.Safety Protect Funtion
4.Heavy & Light Type Optional
5.Space Saving
As manufacturing factory headquartered in guangzhou, an important port city of China's foreign trade, Guangzhou CN Electrical Equipment Co., Ltd. is a high-tech enterprise which integrating R&D, Manufacturing and Trading, one of the leading and exclusive manufacturer of Automatic Partitions and Automatic Doors and the only company in China which has a dedicated manufacturing plant of electrically operated vertical lift folding partition Walls in China.
Our factory covers an area of more than 12,000 square meters. We have our products installations throughout china and abroad. The annual manufacturing capacity to 500 sets of various automatic revolving doors and 10,000 square meters of motorized partition walls, we have produced and installed Automatic Doors and Electrical Movable Walls for all types of establishments like high end residences / conference room / banquet halls in hotels / auditorium / convention centre / meeting rooms / board rooms / training rooms etc.
All the materials used are in compliance to international standards such as ISO 9001, CE, IEC etc. With the strictly control for designed, production, inspection and services by our advanced quality management system, enable the products of Guangzhou CN Electrical Device Co., Ltd selling well in the domestic market, and keep rapid growth in the European, American, Asia and Middle East market. Successfully established strategic cooperative partnership with famous domestic and foreign enterprises like Siemens, Phillips, and BEA etc.
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Contact Person : | Edward Chang |
---|
