Name: Commercial Furniture Acoustic 9m High Operable Partition Wall Movable Wall For Mulit-purpose Hall and Hotel
Brand: Commercial Furniture Acoustic 9m High Operable Partition Wall Movable Wall For Mulit-purpose Hall and Hotel
SKU: NW-125
Rating: 4.6 (174 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

General Use: Commercial Furniture

Type: Office Furniture

Mail Packing: Y

Model Number: NW-125

Product Name: Acoustic 9m High Partition Wall

Operation: Top Hung Without The Floor Track

Panel Position: Top&Bottom Retractable Pressure Seal

Last Panel Closure: Telescopic Sleeve Panel

Finishing: MDF,Plywood,Fabric,Vinyl

Certificate: ASTME 90 SOUNDPROOF TEST

Acoustic: 41dB-58dB

Basic Infomation

Certification: ASTME 90 SOUNDPROOF TEST

Model Number: NW-125

Payment & Shipping Terms

Packaging Details: Paper Carton and Wood Pallet. All panel side and corner will be protected by mdf slat.

Supply Ability: 3600 Square Meter/Square Meters per Month

Product Description

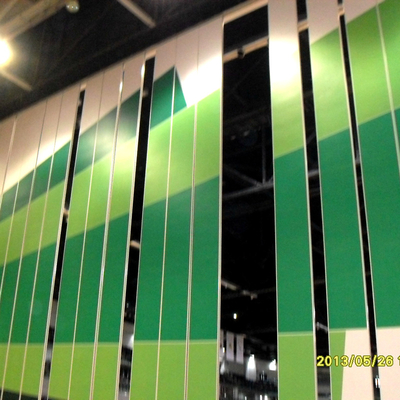

Acoustic 9m High Partition Wall Movable Wall For Mulit-purpose Hall and Hotel

The Neuwall Partition Walls is aluminum-framed operable partition is the most versatile operable wall constructed today. Partitions are a series of flat panels, approximately range from 600mm(23") to 1200mm(47") wide. They have a wide array of features and options to meet most design and budget requirements. Models are acoustically rated, available in 65mm(2.6") ,80mm(3")or 100mm(4") thick models, and in single, pair hinged configurations.

Ultra-high type.

designed for movable partition as high as 7 m to16 m with max soundproof rate 53 dB. Load bearing of each meter is more than 2000 kilograms, pulley bearing more than 1600 KGS, used in large place, such as banquet hall, multi-function hall, exhibition center, gym and conference room. Ultra-high type partition is top hung system, hanging wheel sliding in the track smoothly and stability without vibration, the 16 meters high partition can easily moved even being pushed at waist-high. With build-in oriental device, the panel can make a turn automatically as sliding in the straight rail.

What is my function?

The Neuwall Partition Walls is a top quality moveable wall system that allows you to optimize the use of available space with speed and ease.

Stacking.

Panel with double rollers can be stacked in a variety of positions.Panels with single roller may be parked to one or both sides of the opening

Operation.

The continuously hinged panels are pulled from their parked position to ‘close’ (or extend) the wall and pushed back to the parked position to ‘open’ (or fold)the wall. Final flat alignment of wall panels is assisted pneumatically by a gas piston located in the top track. A lever or recess handle is fitted to the lead panel and this combined with a vertical rebated profile provides the system with its pass door. The door is available with or without a lock cylinder.

How To Work

Our easy lock-up set.

Retractable pressure seals on top and bottom are extended and retracted by a single 180°turn removable operating handle.

Retractable Pressure Seals.

Once the panel is positioned, they are sealed in place with retractable pressure seals

Telescopic sleeve panel.

Final closure of the wall is achieved by extending a telescopic sleeve on the last panel. The sweep strip simultaneously extends the top and bottom. The rubber sealing strip on the side edge of telescopic panelcan seal the wall tightly to reach acoustic integrity.

Stainless Steel Roller.

pulley bearing more than 1600 KGS

Steel Track.

Load bearing of each meter is more than 2000 kilograms

Steel Intersection.

The panel can make a turn automatically as sliding in the straight rail.

Panel Suspension	Top hunge system without the need for a floor track.
Panel Width	Each panel 600mm-1200mm.
Track	Aluminum OR Steel Track
Roller on panel	Single or Double Roller
Panel Frames	Heavy-duty steel-gusseted aluminum inner frames reinforced with full height.
Top&bottm seals	Top and bottom pressure retractable seals ensure effortless moved and locked.
Module	700mm - 1200mm maximum.
Panel stacking	Numerous panel stacking options for complete flexibility.
Panel face	MDF,Plywood, woven fabric, Leather,Natural wood veneer, Melamine,Wood moldings, etc.
Finishes	Satin anodised or polyester powder coating to all exposed aluminium components available in a wide range of colours as standard.

Features & Benefits

Movable, top hung system without the need for a floor track
Retractable top and bottom seals ensure effortless movement of panels
Combines elegance with robust construction
Concealed or exposed panel edge profiles
Numerous panel stacking options for complete flexibility
Sealed for life roller assemblies provide smooth and silent movement
Various levels of sound reduction

TYPE	NW821	NW835	NW840&125A
Panel suspension	Top hung only
Track system	Single or twin point
Panel thickness	65MM	88MM	100MM OR 125MM
Panel height	Up to 4000mm,Heights greater than 3000mm refer to our Technical Dept	Up to 6000mm,Heights greater than 6000mm refer to our Technical Dept.inset Pass doors above 2400mm.Full Height pass door up to 3000mm high Document 'M'disabled doors-optional
Max height	4000mm with heavy duty track	6000mm with heavy duty track	18000mm with heavy duty track or steel track
Panel width	600-1200mm
Frame construction	Aluminium	Aluminium	Aluminium/steel
Face material	9mm/12mm	9mm/12mm	9mm/12mm/15mm
Fire safety	optional Class I or O
Vertical profiles	Aluminium,anodised with sealing profiles,painted-optional	Aluminium,anodised with sealing profiles,painted-optional	Aluminium,anodised with sealing profiles,painted-optional
Retractable seals	Aluminium,black with double rubber seals	Aluminium,black with double rubber seals	Aluminium,black with double rubber seals
Operation of seals	Manual,with supplied operating handle
Locking	Optional lock to pass doors
Pass Doors	Single open in oanel or double open in two panel
Sound insulation	41,43,48dB Rw	43,48,51,53dB Rw	48,51,53,58dB Rw
Weight	Approx 33-40kg/sq M	Approx 43-50kg/sq M	Approx 63-70kg/sq M

Certifications

Our Company

Neuwall Partition Wall

Neuwall ,has been established since 2004, was developed from Shanghai Gibo Group whose reputation for providing high-quality,cost-effective and energy efficiency Building Materials and today we offer the wide ranges of Movable Partition walls and Glass walls in the world, targeting large organizations, such as Hotel, Office, Conference room ,Restaurant and Public area in the world that required the flexibility ,quickly and efficiently reconfigure their space environments..

Exhibition

Our Work Team

Packing & Delivery

FAQ

1)How to select the suitable movable wall for your site?
We have 4 types of movable wall,You can choose the right movable wall upon the Height and Soundproof requirement as following,
NW821-- Max height 3.5m, soundproof: 38dB to 43dB
NW835-- Max height:5.5m,Soundproof: 43dB to 53dB
NW840--- Max height:7m,Soundproof: 43dB to 58dB
125ultra-height---Max height:17m,Soundproof: 38dB to 48dB
2)What you should do on site?
A beam(truss) should built on site for track installation.The min distance leaving for track installation from false ceiling to top ceiling is 200mm.
3)How to install?
We will provide the installation manual and video guiding the installation job. We can also dispatch the installation engineer supervising the installation as request.
4)What is lead time?
The lead time is 7 days to 10 days.

5)How to transport?
Sea transport is a common mode of transportation. In an emergency, can be air freight. 6)How do the goods packing?
corrugating paper packaging, MDF batten cover all around corner.The movable wall panel and track, fittings will be packed separately.
7)What is Procurement procedure?
Firstly, send us the shop drawings(if the shop drawings is not available, you can tell us the height from false ceiling to
finished floor and width from wall to wall)
Secondly, we offer you the movable wall layout drawings for your confirmation
Thirdly, we quote the movable wall in accordance with confirmed drawings.
8)What is finishing face?
The bottom panel is MDF or plywood, which is unfinished face. You can do decoration on site, such as wallpaper, paint, etc.We can also provide the product with finished face, such as faux wood, Woven fabric and Leather.
