Name: Modern Collapsible Steel Frame Acoustic Partition Walls For Hall and Meeting Center
Brand: Modern Collapsible Steel Frame Acoustic Partition Walls For Hall and Meeting Center
SKU: Ultra-high 125
Rating: 5 (113 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

General Use: Commercial Furniture

Type: Office Furniture

Mail Packing: Y

Application: Home Office, Hotel, Apartment, Office Building, Hospital, School, Mall, Hall, Gym, Hotel,Restaurant,Conference Room And Multi-purpose Hall

Design Style: Modern

Model Number: Ultra-high 125

Product Name: Operable Wall Partition Walls For School And Clinic

Max Height: Up To 18000mm High

Keywords: Portable Wall Partitions,Partition Wall,Movable Wall

Finishing Option: MDF,Fabric,Acoustic Fiber,Vinyl And Wooden Veneer,Etc

Soundproof Rate: 43dB-48dB

Warranty: 2 Years For Face And 10 Years For Hardware

Basic Infomation

Model Number: Ultra-high 125

Payment & Shipping Terms

Packaging Details: Acoustic Movable Glass Wall With Smart Glass,Sliding Glass Wall Application For Library and Office Wooden Box and Pallet

Supply Ability: 36000 Square Meter/Square Meters per Year

Product Description

Specification

Panel Suspension	Top hunge system without the need for a floor track.
Panel Width	Each panel 600mm-1200mm.
Hanging Track	Aluminum OR Steel Track
Roller on panel	Single or Double Roller
Panel Frame	Heavy-duty steel-gusseted aluminum inner frames reinforced with full height.
Top&bottm seals	Top and bottom pressure retractable seals ensure effortless moved and locked.
Module	600mm - 1200mm maximum.
Panel Stacking	Numerous panel stacking options for complete flexibility.
Panel Face	MDF,Plywood, woven fabric, Leather,Natural wood veneer, Melamine,Wood moldings, etc.
Aluminum edge finish	Satin anodised or polyester powder coating to all exposed aluminium components available in a wide range of colours as standard.

Manufacturing Technique

Our easy lock -up set

Retractable pressure seals on top and bottom are extended and retracted by a single 180°turn removable operating handle

Top&bottom Retractable Seal

Once the panel is positioned, they are sealed in place with retractable pressure seals

Last Closure Panel(LCP)

Final closure of the wall is achieved by extending a telescopic sleeve on the last panel.The sweep strip simultaneously extends the top and bottom.

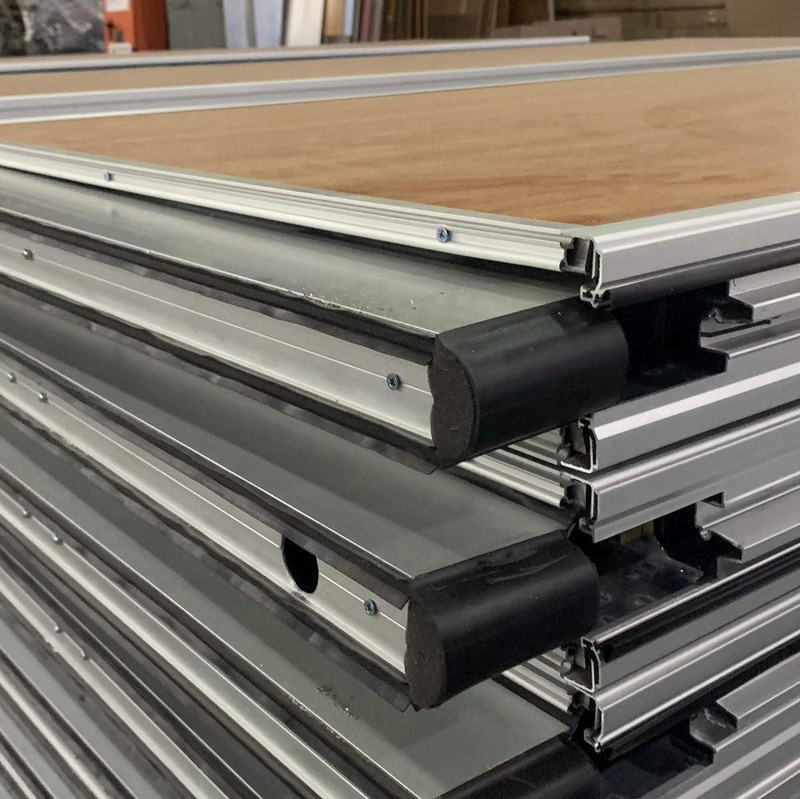

Manufacturing technique

Built-in vinyl seal achieving excellent insulation effect.Braced and welded steel frame ensure the solid frame.

Wall Partition Movable Partition Walls For Big Hall and Room

Ultra-high-125 up to 18000mm high

Designed for movable partition as high as 7 m to16 m with max soundproof rate 53 dB. Load bearing of each meter is more than 2000 kilograms, pulley bearing more than 1600 KGS, used in large place, such as banquet hall, multi-function hall, exhibition center,gym and conference room. Ultra-high type partition is top hung system, hanging wheel sliding in the track smoothly and stability without vibration, the 16 meters high partition can easily moved even being pushed at waist-high. With build-in oriental device,the panel can make a turn automatically as sliding in the straight rail..

TYPE	NW821	NW835	NW840	Ultra-high-125
Panel suspension	Top hung only
Track system	Single point or double point roller on each panel
Panel thickness	65mm	88mm	100mm	100 or 125mm
Max Height	Up to 3500mm	Up to 5000mm	Up to 6000mm	Up to 18000mm
Panel width	6000mm to 1200mm, greater than 1200mm Up to refer to our Technical Dept
Frame construction	Heavy-duty steel-gusseted aluminum inner frames reinforced with full height
Face material	9mm MDF	13mm MDF	13mm MDF	13mm MDF
Vertical profiles	Aluminium,anodised with sealing profiles,painted-optional
Retractable seals	Aluminium,black with double vinyl seals
Operation of seals	Manual,with supplied operating handle
Pass Doors	Single open in oanel or double open in two panel
Sound insulation	38db-43dB Rw	43dB-48dB Rw	50dB-55dB Rw	50dB-55dB Rw
Weight	Approx 33-40kg/sq M	Approx 43-50kg/sq M	Approx 48-52kg/sq M	Approx 48-52kg/sq M

Company Profile

Neuwall Partition Wall, established since 2004, was developed from Shanghai Gibo Star whose reputation for providing high-quality, cost-effective and energy efficiency Building Materials and today we offer the wide ranges of Movable Partition walls and Glass walls in the world, targeting large organizations, such as Hotel, Office, Conference room, Restaurant and Public area in the world that required the flexibility, quickly and efficiently reconfigure their space environments.

Our Work Team

Packing & Delivery

FAQ

1)How to select the suitable movable wall for your site?
We have 4 types of movable wall,65type,80type,100type and 125 ultra-high type. You can choose the right movable wall upon the
Height and Soundproof requirement as following,
NW821-- Max height 3.5m, soundproof: 38dB to 43dB
NW835-- Max height:5.5m,Soundproof: 43dB to 53dB
NW840-- Max height:7m,Soundproof: 43dB to 58dB
125ultra-height---Max height:17m,Soundproof: 38dB to 48dB
2)What you should do on site?
A beam(truss) should built on site for track installation.The min distance leaving for track installation from false ceiling to top ceiling is 200mm.
3)How to install and who will install the partition wall?
We will provide the installation manual and video guiding the installation job. We can also dispatch the installation engineer supervising the installation as request.
4)What is lead time?
The lead time is 7 days to 10 days.
5)How to transport?
Sea transport is a common mode of transportation. In an emergency, can be air freight.

6)How do the goods packing?
corrugating paper packaging, MDF batten cover all around corner.
The movable wall panel and track, fittings will be packed separately.
7)What is Procurement procedure?
Firstly, send us the shop drawings(if the shop drawings is not available, you can tell us the height from false ceiling to
finished floor and width from wall to wall)
Secondly, we offer you the movable wall layout drawings for your confirmation
Thirdly, we quote the movable wall in accordance with confirmed drawings.
8)What is finishing face?
The bottom panel is MDF or plywood, which is unfinished face. You can do decoration on site, such as wallpaper, paint, etc.
We can also provide the product with finished face, such as faux wood, Woven fabric and Leather.
