Modern Steel frame and face movable partition wall for office and multi-function hall

20.0 square meters
MOQ
Modern Steel frame and face movable partition wall for office and multi-function hall
Features Gallery Product Description Request A Quote
Features
Specifications
General Use: Commercial Furniture
Type: Office Furniture
Mail Packing: N
Application: Home Office, Hotel, Office Building, Hospital, School, Mall, Hall, Gym
Design Style: Modern
Model Number: NW840-W
Operation: Top Hung Without The Track On Floor
Thickness: 100mm
Frame Material: Steel Frame And Steel Profile
Panel Position: Top&bottom Retractable Seal
Last Panel Closure: Telescopic Sleeve Panel
Surface Material: Wooden,MDF,Plywood,Fabric Or Vinyl
Soundproof: 50dB-55dB
Basic Infomation
Model Number: NW840-W
Payment & Shipping Terms
Packaging Details: Paper Carton and Wood Pallet. All panel side and corner will be protected by mdf slat.
Supply Ability: 3600 Square Meter/Square Meters per Month
Product Description
Product Description
Product Name
Operable Partition Wall
Style
Moden
Brand
Neuwall Partition Wall..
Wall panel
Inner steel frame
Application
Hotel,Multi-purpose hall,and office..
Place of Product
Guangdong Province,China
Finish
.Fibric,Wooden,Vinyl and MDF
Modes of packing
Packed in three cartons
Soundproof
43dB-55dB
After sale service
2 years
Detailed Images
Material Description

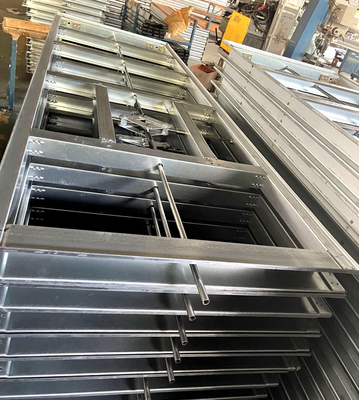

It is new designed operable partition wall.The inner frame and vertical profile are  is steel.The adjustable aluminum edge can offer two model of wall partition panel, frame and frameless edge.
Material Description
New designed top&bottom retractable seal can be extended 40mm ,meeting the uneven floor on site

All gap is sealed with soundproof materials
The gap in top&bottom retractable pressure seal is filled by sponge barrier the sound
Built-in Rubber Seal barrier the sound
10 layer of rubber seal inlaid all groove of aluminum profile ensure no sound escape
Related Products
Certificate
Certificate Introduction
Certificate Introduction
Certificate Introduction
Packing&Shipping
货物包装图4张+1张物流图片

Company Introduction
Neuwall ,has been established since 2004, was developed from Shanghai Gibo Group whose reputation for providing high-quality,cost-effective and energy efficiency Building Materials and today we offer the wide ranges of Movable Partition walls and Glass walls in the world, targeting large organizations, such as Hotel, Office, Conference room ,Restaurant and Public area in the world that required the flexibility ,quickly and efficiently reconfigure their space environments.
FAQ
1)How to select the suitable movable wall for your site?
We have 4 types of movable wall,65type,80type,100type and 125 ultra-high type. You can choose the right movable wall upon the Height and Soundproof requirement as following,
NW821type-- Max height 3.5m, soundproof: 38dB to 43dB
NW835type- Max height:5.5m,Soundproof: 43dB to 53dB
NW840type--- Max height:7m,Soundproof: 43dB to 55dB
125ultra-height---Max height:17m,Soundproof: 38dB to 48dB
2)What you should do on site?
A beam(truss) should built on site for track installation.The min distance leaving for track installation from false ceiling to
top ceiling is 200mm.
3)How to install?
We will provide the installation manual and video guiding the installation job. We can also dispatch the installation engineer
supervising the installation as request.
4)What is lead time?
5)The lead time is 7 days to 15 days.
6)How to transport?
Sea transport is a common mode of transportation. In an emergency, can be air freight.
7)How do the goods packing?
corrugating paper packaging, MDF batten cover all around corner.
The movable wall panel and track, fittings will be packed separately.
8)What is Procurement procedure?
Firstly, send us the shop drawings(if the shop drawings is not available, you can tell us the height from false ceiling to
finished floor and width from wall to wall)
Secondly, we offer you the movable wall layout drawings for your confirmation
Thirdly, we quote the movable wall in accordance with confirmed drawings.
9)What is finishing face?
The bottom panel is MDF or plywood, which is unfinished face. You can do decoration on site, such as wallpaper, paint, etc.
We can also provide the product with finished face, such as faux wood, Woven fabric and Leather.
