Home /Products/Partition Wall Panels/Modern Multiple Application MgO Magnesium Oxide Board Sulfite Board Basement Partition Wall Bathroom Wall Substrate Sanded Mgso4 Board

Modern Multiple Application MgO Magnesium Oxide Board Sulfite Board Basement Partition Wall Bathroom Wall Substrate Sanded Mgso4 Board

100.0 pieces
MOQ
Modern Multiple Application MgO Magnesium Oxide Board Sulfite Board Basement Partition Wall Bathroom Wall Substrate Sanded Mgso4 Board
Features Gallery Product Description Request A Quote
Features
Specifications
Type: SubFloor Mgso4 Board
Warranty: 3 Years
After-sale Service: Online Technical Support
Project Solution Capability: Total Solution For Projects
Application: Office Building
Design Style: Modern
Raw Material: Magnesium Oxide +MgSo4 +Perlite+Fiber Glass Mesh +Non-Woven Cloth
Size: 600*2700mm, 1220*2440mm Or Customized
Thickness: 16-20mm
Density: 1.0-1.3 G/cm3
Edge: Square, Shiplap, T&G
Surface: Standard, Smooth, Sanding
Color: White, Grey
Fireproof Grade: A1 Non-combustible
Basic Infomation
Payment & Shipping Terms
Packaging Details: Standard export wooden pallets
Supply Ability: 5000 Piece/Pieces per Day
Product Description
Product Description

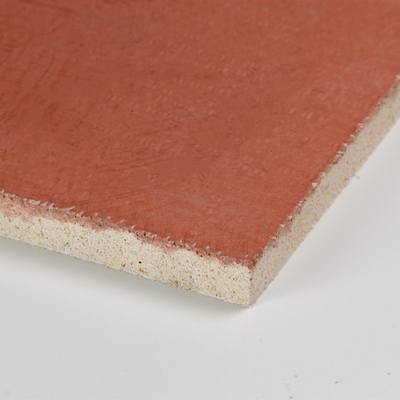

Subflooring Mgso4 Board

It made from magnesium oxide (Mgo), magnesium sulfate (Mgso4), bamboo filler and reinforced by fiber glass mesh.
Based on the latest advancement in cement and fiber-reinforcement technology, Mgso4 fire rated floor offer EXTREME STRENGTH and that is LIGHT WEIGHT and COST EFFECTIVE.
It has the functions of fire, water, mould, sound and heat insulation.
Structural floors are lighter than precast or poured concrete, install in a similar way to wood decking, and are resistant to mildew, moisture and termites. Tongue and Groove, Ship-Lap edges available.

Subflooring Mgso4 Board

Sanded board structure and A unique tongue & groove flooring substrate, grooved down one long side with a matching tongue down the other.
It has a neat safety surface. Bending strength ≥20-25Mpa. Concentrated load up to 370Kgs.and Uniform load up to 500Kgs on 450mm joint center.
Product
Subfloor load bearing mgso4 board
Basic Compounds
(MgO)+(Mgso4s)+(glass fibre)+(Bamboo fibre)
LENGTH
8 ft(2440mm) 9ft(2700mm) Customized
WIDTH
4 ft(1220mm) 2ft(600mm) Customized
THICKNESS
15mm 18mm 20mm
USE
Internal, External subflooring and decking
Color
Grey and White
Surface texture
smooth one side; Sanded back
Edges
Tongue and Groove, Shiplap
Density
1.15T/M3
Combustibility / Fire Ratings
non-combustible / 12mm exceeds 120mins fire rating
Moisture content
≤8%
Bending Strength
≥20-25Mpa
Impact Strength
> 9kJ/m2
Modulus of elasticity
＞5000Mpa
Dry Shrinkage
≤0.3%
Wet Expansion Rate
≤0.3%
Thermal Conductivity
~0.44 W / mK
Thermal Expansion Hot/Cold
0,01 mm/mC (from temp +20C to -20C)
Surface Alkalinity
8-10 Ph
Asbestos Analysis
Absent - not measurable
Formaldehyde Analysis
Absent - not measurable
TVOC-ASTM D5116-10
Below measurable levels of test instruments
Chloride ion content-ASTMC 871-11
0.012%
Certifications
Packing & Delivery
Size
Weight-KG/Piece
Loading capacity in 20'ft CNT
3mm X 1220 X 2440
9.0
2200 pieces, 8 wooden pallets
6mm X 1220 X 2440
18.0
1100 pieces, 8 wooden pallets
8mm X 1220 X 2440
24.0
824 pieces, 8 wooden pallets
9mm X 1220 X 2440
27.0
732 pieces, 8 wooden pallets
10mm X 1220 X 2440
30.0
660 pieces, 8 wooden pallets
12mm X 1220 X 2440
36.0
550 pieces, 8 wooden pallets
15mm X 1220 X 2440
45.0
440 pieces, 8 wooden pallets
16mm X 1220 X 2440
48.0
412 pieces, 8 wooden pallets
18mm X 1220 X 2440
54.0
364 pieces, 8 wooden pallets
19mm X 1220 X 2440
57.0
348 pieces, 8 wooden pallets
20mm X 1220 X 2440
60.0
328 pieces, 8 wooden pallets
25mm X 1220 X 2440
75.0
264 pieces, 8 wooden pallets
Our Factory
Customer Photos
FAQ

FAQ

1.What is Mgo Board made of? What is the chloride content? All Mgo Board consists of 3 elements, magnesium oxide, salt and crystal water. The main component of Mgo Board is MgO which is completely non-flammable and can be used for fire protection. There are mainly two different types of salt: -Magnesium oxychloride hydrated /Mgcl2 -Magnesium oxysulfate hydrate/Mgso4 Mgoso4 board uses magnesium sulfate instead of magnesium chloride. MgSo4 panels incredibly waterproof by preventing moisture from absorbing back into the halogens in the board. According to The China Magnesium Oxide Board Industry Association issued a new standard of magnesia board industry, dissolvable (free) chloride ion content is below 5%, Content of Chloride is below 10%. Mgso4 board Chloride content is below 0.012%, with reference to ASTM C871-11 you don't have to worry about "crying boards" when you use Mgso4 board on steel or metal frame.

2. Is Mgo Board waterproof?
Mgo Board is considered to be moisture resistant, but during prolonged exposure, moisture can affect it and it will
experience hydrothermal expansion. When used outdoors, Mgo board should be covered or coated to protect it from the environments,
we can do waterproofing before leaving the factory, such as adding waterproofing elements or sealing with UV paint.

3. Is Mgo Board safe product?
Yes. Mgo Board is safer than many comparable building products. It is a mineral based product made with non-toxic
ingredients.It is completely recyclable and resistant to mold, mildew, fungus and allergens. It is also free of carcinogens and silicas.

4.What dimensions are commonly used to define Mgo Board?
Mgo Board are sold in 4 × 8 ft,4x9 ft,4x10ft sheets other small size can customized and in multiple thickness from 3mm to
30mm.
