ENVIRONMENTAL FOOTPRINT MDF Board Office Sliding Movable Partition Doors in Guangdong for Interior Design

100.0 Square Meters
MOQ
ENVIRONMENTAL FOOTPRINT MDF Board Office Sliding Movable Partition Doors in Guangdong for Interior Design
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 5 Years
After-sale Service: Online Technical Support
Project Solution Capability: NONE
Application: Apartment, Courtyard, Farmhouse, Hospital, Hotel, Leisure Facilities, Mall, Office Building, School, Sports Venues, Supermarket, Villa, Warehouse, Workshop, Meeting Room, Hall, Office, Studio
Model Number: Kinglkus Grooved Wooden Acoustic Panel-43a6
Product Name: Grooved Wooden Acoustic Panel Soundproof Material Board
Material: E0 MDF,B1 MDF,HDF
Size: 132*2440mm, 166*2440mm, 197mm*2440mm
Thickness: 12mm, 15mm, 18mm
Finish: Painted, Veneer, Melamine Paper,HPL
Density: 550kg/m3 ~ 880kg/m3
Installation: Aluminum Keel, Wooden Fram
Feature: ENVIRONMENTAL FOOTPRINT,RECYCLED CONTENT
Model: 13/3, 20/3, 29/3
Basic Infomation
Model Number: Kinglkus Grooved wooden acoustic panel-43a6, 13/3, 20/3, 29/3
Payment & Shipping Terms
Product Description

Product Description

Mdf board office sliding partition doors movable in guangdong for interior design

Product details

Product name Grooved wooden acoustic panel soundproof material board
Material E0 MDF,B1 MDF,HDF
Application Meeting Room, Hall, Office, Studio
Size 132*2440mm, 166*2440mm, 197mm*2440mm
Thickness 12mm, 15mm, 18mm
Finish Painted, veneer, melamine paper,HPL
Density 550kg/m3 ~ 880kg/m3
Installation Aluminum Keel, Wooden Fram
Feature ENVIRONMENTAL FOOTPRINT,RECYCLED CONTENT
Model 13/3, 20/3, 29/3
Product Keywords mdf board office sliding partition doors,mdf board movable partition in guangdong,mdf board for interior design

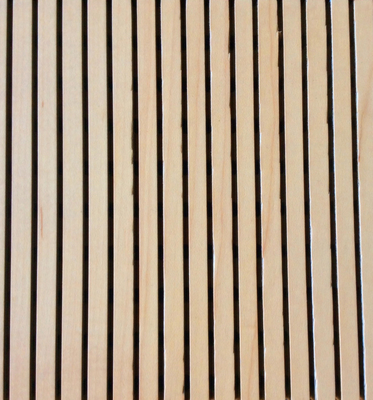

Our Kingkus Wooden Timber Acoustic System utilizes aesthetically pleasing wood plank panels to create exquisite wall and ceiling treatments. Kingkus works on a concept of creating high performance acoustical products with an exceptional visual appearance.

With Kingkus grooved panels it is possible to achieve installations that meets high level of absorption and a high aesthetic level at an medium cost. With different sort of patterns and grooves width different levels of absorption and different aesthetic results can be obtained.

Acoustical Wooden Acoustic Panel come in a variety of configurations to meet all acoustical requirements. Wooden acoustic panel balances sound reflection and absorption through perforations. Using perforated rigid materials in conjunction with absorptive backings, allow for aesthetically pleasing wall and ceiling finishes while providing excellent acoustic performance.

Kingus Wooden Factory select wood veneers sliced from hand-picked logs and bonded to fire retardant medium density fiberboard. Manufacturing then applies two coats of UV polyacrylate lacquer. This insures consistent quality for each panel on every project.

The reverse side of each panel receives a layer Felt acoustic textile.

Extensive supply for middlemen and projects

TECHNICAL INFORMATION FOR KINGKUS WOODEN ACOUSTIC CEILING PANEL:

Model G32 Groove wooden panel
Specification Groove 4mm, Center to Center 32mm or Groove 3mm, Center to Center 32 ; mm
Thickness 12mm/15mm(16mm)/18mm
Surface Melamine / Wooden Veneer with Varnish/ Painting / HPL
Co Material E0 MDF/B1 MDF/Magnesium composited /NF Golden
Back Soundtex acoustic felt
Installation Aluminum keel and clips, wood frame, gun nail
Test Eco protction, sound absorption, flame retardant


Dimensions:

There are different sort of large dimension panels to be used on walls and not practicable continuous roofs, and standarized roof plates in versions of visible profiling, semi-hidden, hidden and practicable hidden.

Wall lining:

Panel plates are often used on mesures 2440*133mm,2440*197mm(2400x1200, 2400x600mm for Perforated wooden panel). with 15mm,16mm,18mm of thickness.

Ceilings:

it is more usual to use 15mm thick plates on standardized measures 1200*133mm,1200*197mm(1200x600 and 600x600 for Perforated wooden panel), though other combinations are also possible.

Mounting Systems:

The different plates are available with different perimetral , depending on the type of desired assembly.

Materials and finishes:

The support material is always MDF E0 and fiberboard wood panels in standard or fireproof versions. Surface finishes can be raw, melamine,Veneer, varnished or lacquered. Other options on request.

The plates may incorporate to the back and as an option, an acoustic veil to improve the sound absorbing qualities of the panel.


Cleaning and maintenance:

After installation, the panels should be treated as any fine piece of furniture would be treated. A final cleaning with a soft cloth and any good furniture polish will enhance and preserve the luster of the finish. Panels may be vacuumed with a non-marring, natural bristle head. Avoid using a short or hard bristle cleaning head as damage may occur. After removing the dust, you should restore the woods beauty by wiping the panels with a quality furniture polish such as lemon oil.

Do not spray the polish directly on the panel. Instead, apply the polish to a soft dust-free cloth and wipe the panels lightly. At all costs, avoid using water or a damp cloth as this may affect the stability of the veneer surface. The intervals of cleaning will depend on the conditions of your building. Cleaning is recommended at least once a year but may be dependent upon your building conditions. Periodic maintenance will preserve the look and performance of Kingkus wooden acoustic panel for many years to come.

Model Specification NRC Open Area
G5 P/M/V-G-2/3-5-16 0.95 40%
G8(3/5) P/M/V-G-3/3-8-16 0.91 23%
G8(2/6) P/M/V-G-2/3-8-16 0.91 22%
G10 P/M/V-G-2/8-10-16 0.91 20%
G16(3/13) P/M/V-G-3/8-16-16 0.90 12%
G16(2/14) P/M/V-G-2/8-16-16 0.90 10%
G32(4/28) P/M/V-G-4/28-32-16 0.83 8%
G32(3/29) P/M/V-G-3/29-32-16 0.80 6%



Certifications

OUR CERTIFICATES

Company Information

ABOUT US

Kingkus, which began as Kingforest, started construction & real estate business from 1997, it's one of the largest MDF panel,plywood and other building and decor materials supplier based in central China. Kingkus entered the sound-absorbing board industry in 2010, at the same time, we open a factory in Jiangsu

Packaging & Shipping

PACKAGE:

Standard export carton packing.

DELIVERY TIME:

3-7 days after confirming order,detail delivery date should be decided according to
production season and order quantity.

Our Advantages

WHY CHOOSE US

Production

In exceptional circumstances,the normal delivery

24-hour Service

Solve all problems within 24 hours

Experience

Engaged in building materials industry for 20 years

Quality

Keep the surface smooth for five years,aftermarket replenishment
